How to control Sharp air conditioner remote control J-tech inverter series

With the following article, WebTech360 will join you to learn about how to use Sharp J-tech inverter's remote most effectively.

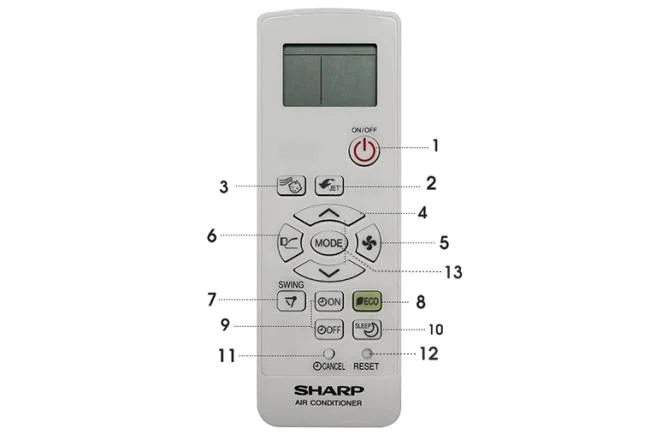

Sharp air conditioner remote button panel

1. Power button (ON / OFF): Start the machine.

2. Powerful Jet: The machine will operate at maximum capacity and will adjust the flap optimally so that the room is cooled fastest.

3. Baby Mode button (operation mode for children): The temperature will be adjusted gently, quietly, coolly. Not too cold, too humid or too hot to avoid affecting the child's health

4. Thermostat button: The device allows you to adjust the temperature up and down ± 0.5oC

5. Fan (fan speed setting): You can adjust the fan speed as desired. There are 4 different fan speeds available: Automatic -> Light -> Low -> High

6. Gentle Cool Air button: The vertical spoiler will blow cold air onto the ceiling to avoid being knocked directly at

7. Swing: Helps you to adjust the wind direction as desired

8. Eco (Economical operation mode): In this mode, the machine will operate with lower than normal power consumption.

9. On:   The mode allows you to schedule the machine to turn on. The machine will turn on before the appointment time, to get the correct temperature as required.

Off: Mode allows you to schedule the shutdown timer.

10. Sleep: In order for you to have a quiet sleep, the machine will automatically adjust the temperature and fan speed to best suit your room conditions.

11. Mode: Select an operation mode. There are 3 operating modes:

+ Automatic mode ( Auto ): The machine will automatically adjust the temperature, fan speed to suit the room temperature with the built-in sensor.

+ Cooling mode ( Cool ): In this mode, the machine will give you a cool atmosphere, not too cold or too hot. You can customize the fan speed and temperature as well. Note if the outside temperature is too high compared to the room, it will affect the cooling effect of the machine.

+ Dehumidification ( Dry ): The machine will absorb all the moisture in the room, bringing you the freshest air. The fan speed in this mode is automatically set and cannot be adjusted

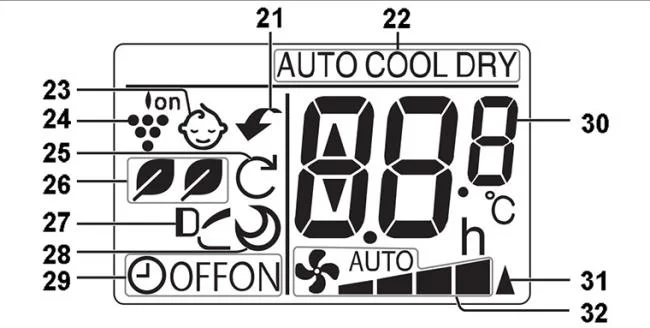

The display screen of the air conditioner remote

21. Strong refrigerant function designation

22. Mode Symbols: Auto / Cool / Dehumidify

23. Baby Mode Symbols (For Young Children)

26. Eco Mode notation (Eco mode of operation)

27. Symbols Gentle Cool Air (gentle wind blowing)

28. Best Sleep notation

29. Turn off timer only

30. Temperature alarm

31. Signal is transmitting

32. Fan speed designation

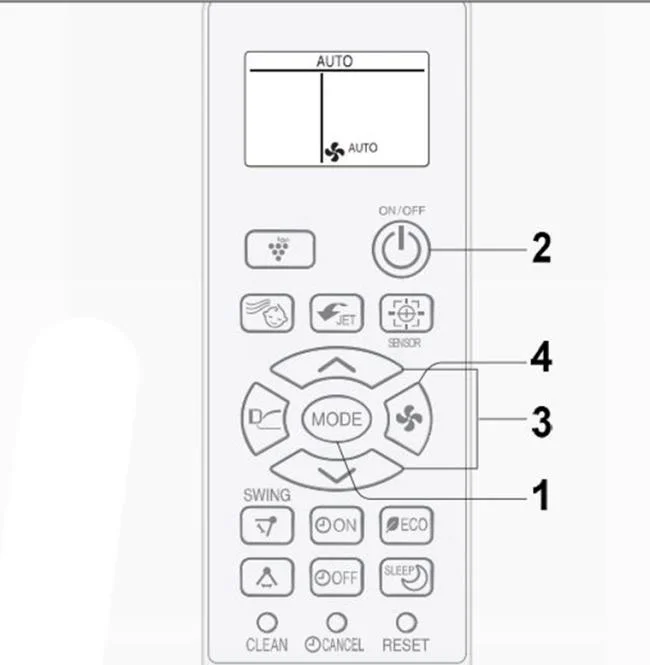

1. Remote general operation mode



Step 1: Press the mode button to select the operation mode in 3 automatic modes, dehumidifying, and cooling

Step 2: Press the ON / OFF button to start the machine. To turn off the device, press the ON / OFF button again

Step 3: Select the Thermostat button to select the desired temperature, each time increase the temperature to about 0.5oC

+ Auto / dehumidification mode: The temperature can be adjusted up or down ± 2oC.

+ Cooling mode: The temperature can be set in the range of 16-30oC

Step 4: Press the Fan button to set the desired fan mode.

Note:

Machine has the function to save the settings before power failure. After the power is restored, the machine will automatically restore to the state it was before the power failure. Except for the timer modes, ultra-powerful cooling, sleep mode, operation for children, economical operation.

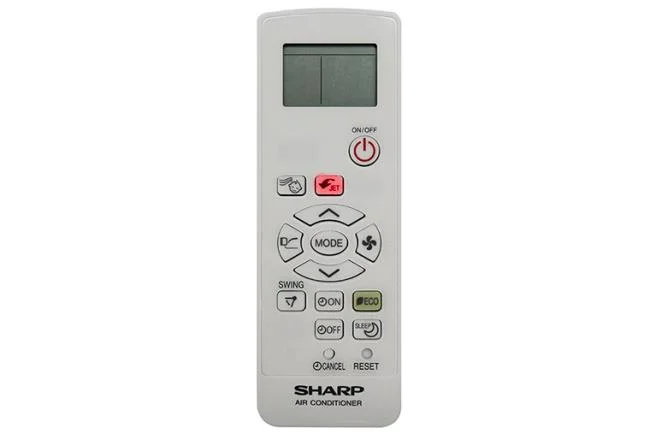

2. Strong cooling mode

 The machine will operate with maximum capacity and adjust the optimal flap so that the room is cooled the fastest.

To cancel the mode, press the Powerful Jet button again. When the room has reached the desired mode, please turn off the mode to avoid wasting electricity

Note:

+ The fan of the machine will operate at extremely high level for about 30 minutes, then switch to high level

+ In this mode, you do not need to set temperature or fan rotation speed

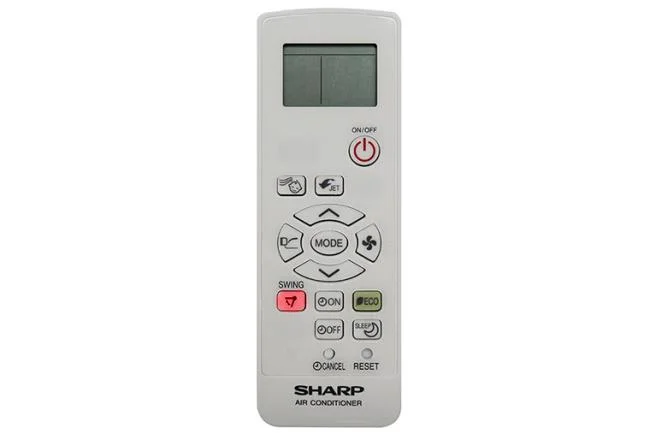

3. How to adjust the wind direction

Step 1: Press the Swing button. The vertical flap will oscillate

Step 2: Press the Swing button again to stop at one of the locations where the machine is pre-designed. The spoiler can only stop at one of the available steps.

Attention:

+ Do not adjust the vertical island by hand

+ Adjust the vertical flap at a low position in the cold or dry mode for a long time, condensation will appear.

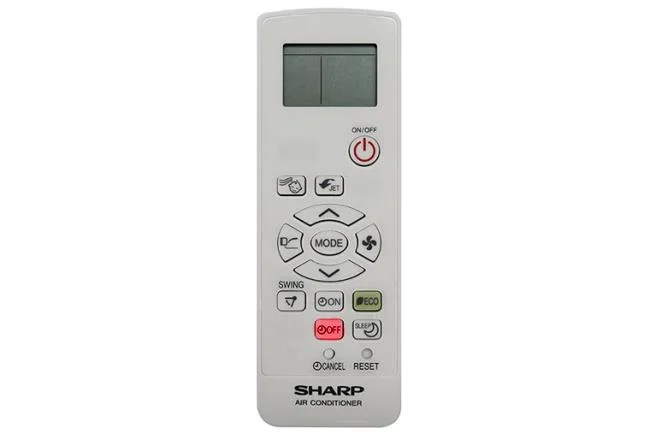

4. Timer shutdown mode



After successful setting, the indicator light "Clock" will light up on the remote screen.



Note: To set the timer to turn on the phone, do the same with the shutdown setting.

+ Minimum installation time is 30 minutes and maximum is 12 hours.

+ You cannot set 2 shutdown and open modes at the same time.

+ If power is lost, all settings will be canceled after power is restored.

Shutdown timer: When setting off timer, the machine automatically adjusts the set temperature to avoid over cooling while you are sleeping. After 60 minutes of installation, the temperature will increase 1oC compared to the original temperature

Timer to turn on the machine: The machine will be turned on before the set time so that the room can reach the desired temperature on time.

WebTech360 believes that, with the above sharing, you can use your air-conditioner more efficiently and economically. You will have a space to relax and work comfortably with the usefulness that Sharp air conditioning brings.
